      PA hotmelt low pressure molding
      Vertical Injection
      Hot Runner Dual Working Stations with Separate Tank

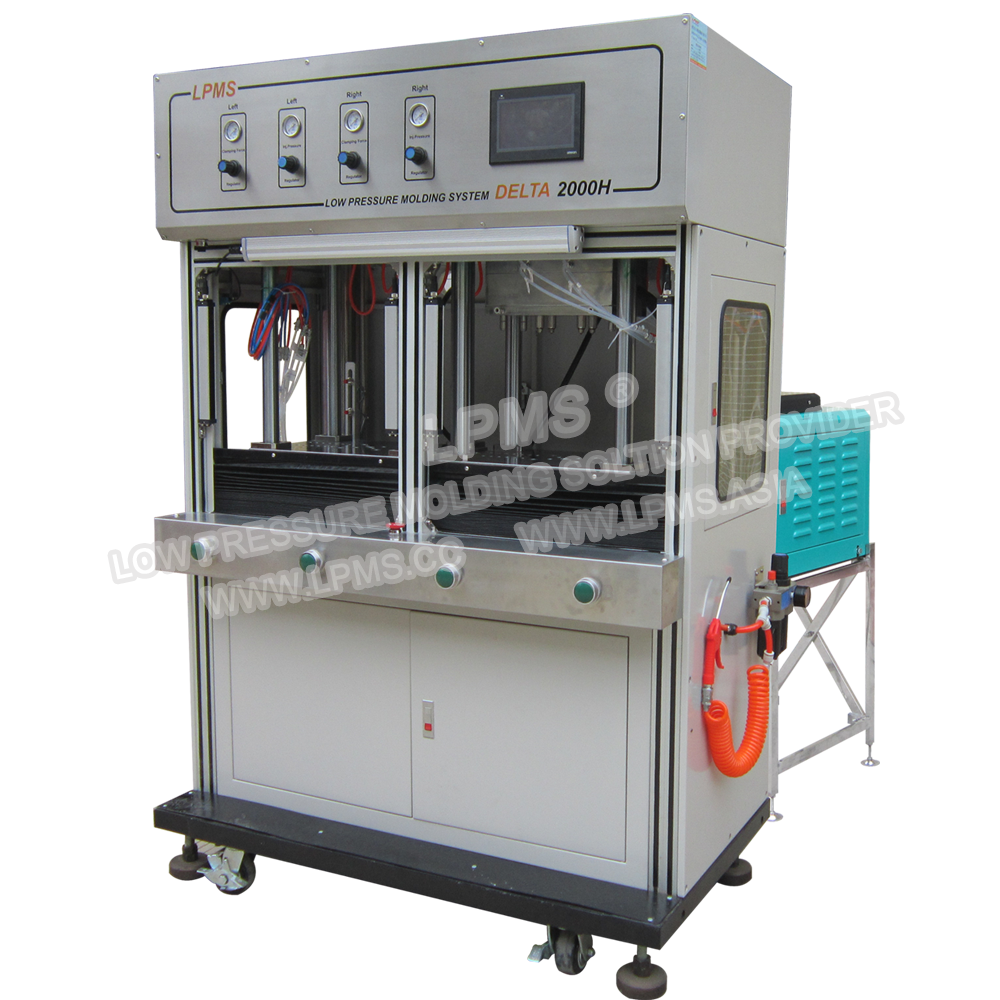

      DELTA 2000H

      Hot Runner Dual Working Stations with Separate Tank

      •   Intuitive touch screen operation.

      •   Hot runner system eliminates runner and improve productivity.

      •   Separate 7 liter melting tank(s). Multiple meltingtank is optional.

      •   LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

      •   Linear scale

      •   The gear pump is made of hard-wearing materialwhich is stable,injection volume accuracy ±0.1g,maximum shot size is 5.8g/s.

      •   Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

      •   Light curtain and dual palm buttons for operator safety.

      •   Ejection system.


      Application

         LPMS?  machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

        Hot runner system eliminates runners and higher output per cycle. It is designed for high volume production.



      Specification


      Machine Size / Weight

      1400 mm x800 mm x 1920 mm / 600 kg

      55.12 in x 31.50 in x 75.59 in / 1323 lbs

      Footprint

      1400 mm x 1700mm  |  55.12 in x 66.93 in

      Working Station Height

      905 mm  |  35.63 mm

      Packing Size / Weight

      1470 mm x 960 mm x 2140 mm / 640 kg

      57.87 in x 37.80 in x 84.25 in / 1411 lbs

      Melting Tank

      Melt on demand 7 liter x 1

      Auto Feeding System

      Optional

      Gun Model & Tip

      Hot Runner System

      Heated Hose

      1.6 m x 2

      Electricity

      200-240VAC / 1 Phase / 50 Hz

      Temperature Control Zones

      11 or 15,depends on part design

      Each Station Gun Tip Q'ty

      2 or 4 , depends on part design

      Temperature Range

      Ambient up to 250°C / 485°F

      Max .Power

      9.5 Kw

      Min. Air Pressure

      0.5 MPa  |  73 Psi

      Air Consumption

      0.18 m3 / min  |  6.3ft3 / min

      Clamping

      Air Over Oil Cylinder

      Clamping Force

      Max.5 Tons ( Option 10 Tons )

      Clamping Stroke

      150 mm  |  5.9 in

      Control System

      7 ”HMI , PLC controlled

      Safety Protection

      Light Curtain , emergency stop button

      Mold Set Size

      250 mm x 150 mm x 308mm / 75 kg

      9.84 in x 5.91 in x12.13 in / 165 lbs

      Max . Mold Set Size

      300 mm x 200 mm x 308 mm

      11.81 in x7.87 in x12.13 in

      Max . Part Size

      100 mm x 90 mm x 18 mm

      3.94 in x 3.54 in x 0.71 in




      Dimension
